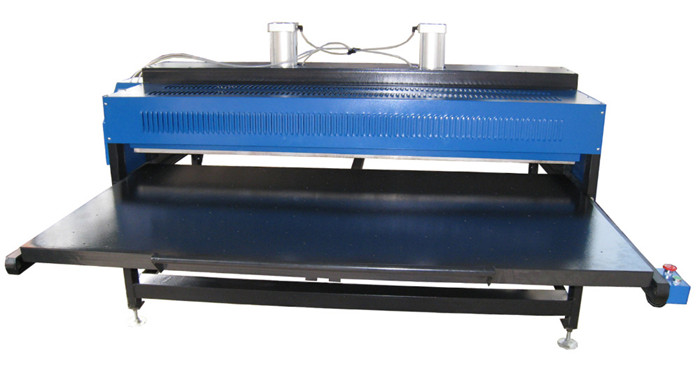

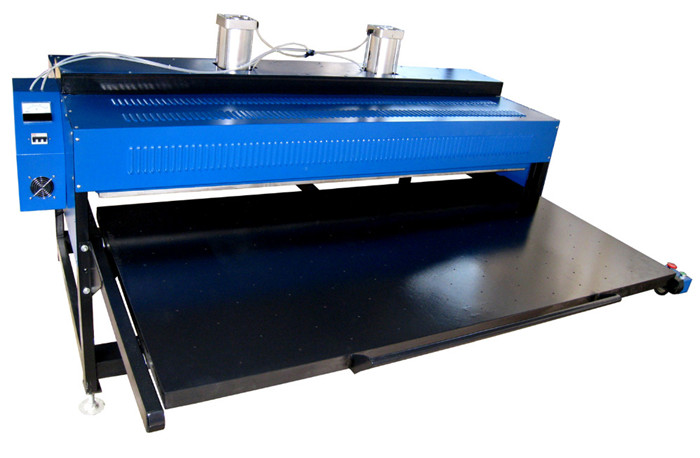

Large Pneumatic Double Plates Heat Press Machine

Product:?Large Pneumatic Double Plates Heat Press Machine

Model Number:?CK-B4


Large Pneumatic Double Plates Heat Press Machine



Specifications:

  • Heat Press Style: Clamshell
  • 24"x31"  Non-Stick Coated Heat Plates
  • Even Heat and pressure Die-casting Heat Platen
  • Digital timer and temperature control
  • Heat resistant silicon pad capable of enduring high temperatures.CE Approved
  • Voltage: 110V-120V
  • Temperature Range: 0° - 415o F

Features:

  • Rugged and durable for years of trouble-free performance
  • Thick items capable (up to 1/2 inch thick)
  • Micro processor precision heat and temperature gauge
  • Scratch resistant baked-on paint
  • Full range heating coils for quick heat up
  • Heat indicating light
  • Electronic time control indicates completion of heat press cycle
Product Description


Technical data


Products

Pneumatic Double Sided Large Format Sublimation Heat Press

Voltage

110V/220V/380V

Power

9000W/1.2KW/1.4KW
Printing Size

60cm x 80cm(24"x31")/80cm x 100cm(31"x39")/ 100cm x120cm(39"x47")

100cm x 150cm(39"X59")/100cm x200cm(39"x79")

Max pressure 480 g / cm2
Maximum temperature 300 ° C
Time range 0s-999s
Gross weight

500KG/1102LBS---540KG/1190LBS---700KG/1543LBS---
930KG/2050LBS---1100KG/2425LBS

Package size

120x90x160cm/140x115x155cm/162x126x155cm

188x131x160cm/245x146x165cm

Feature

Double working tables faster and convenient for printing

Popular type with higher pressure suitable for large sizes printing materials

Payment TT    Paypal    Western Union    L/C





Detail spare parts shows:
